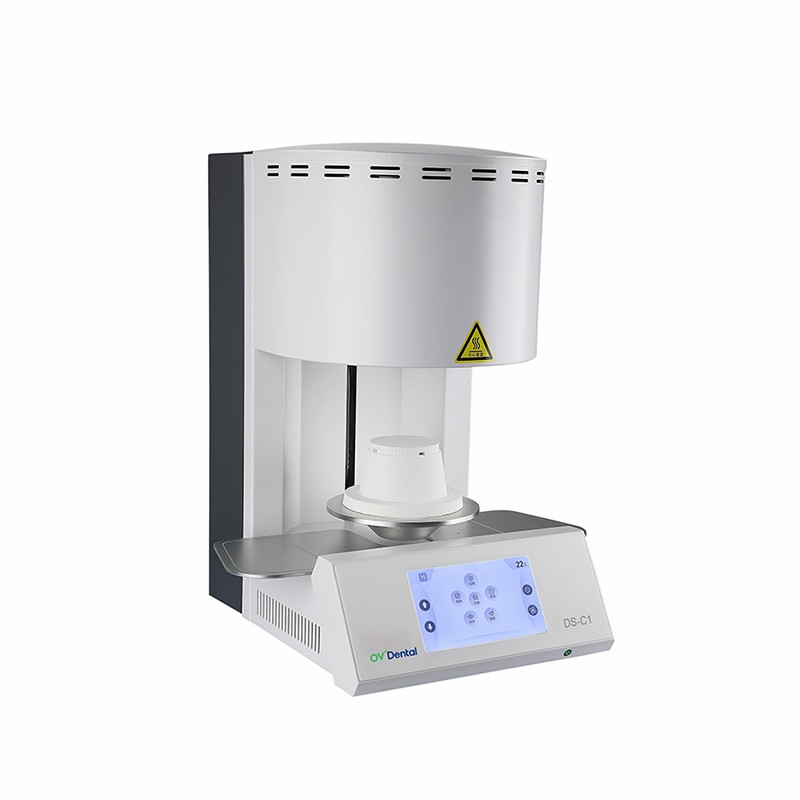

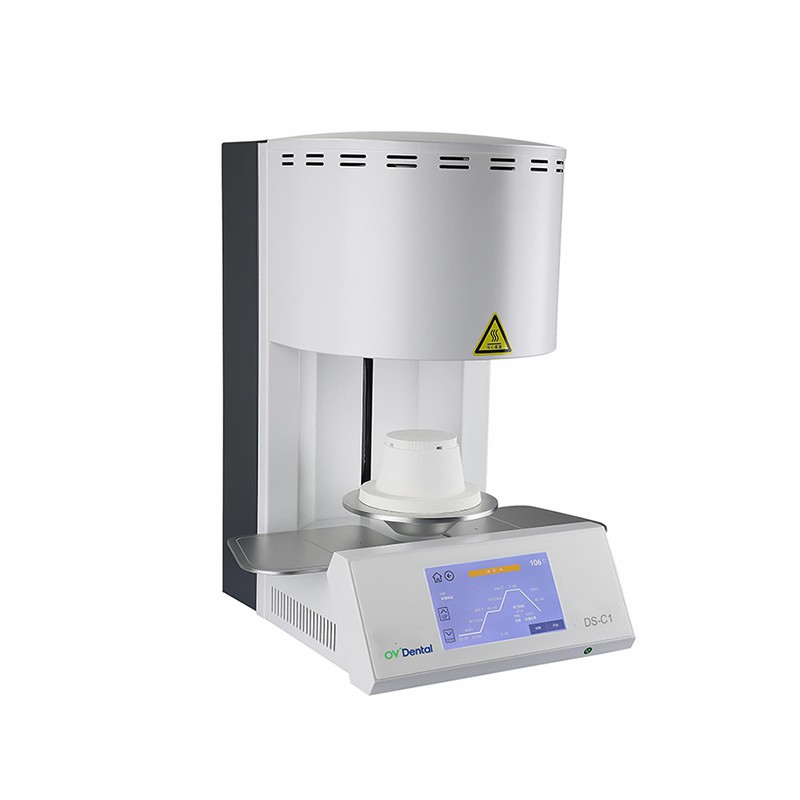

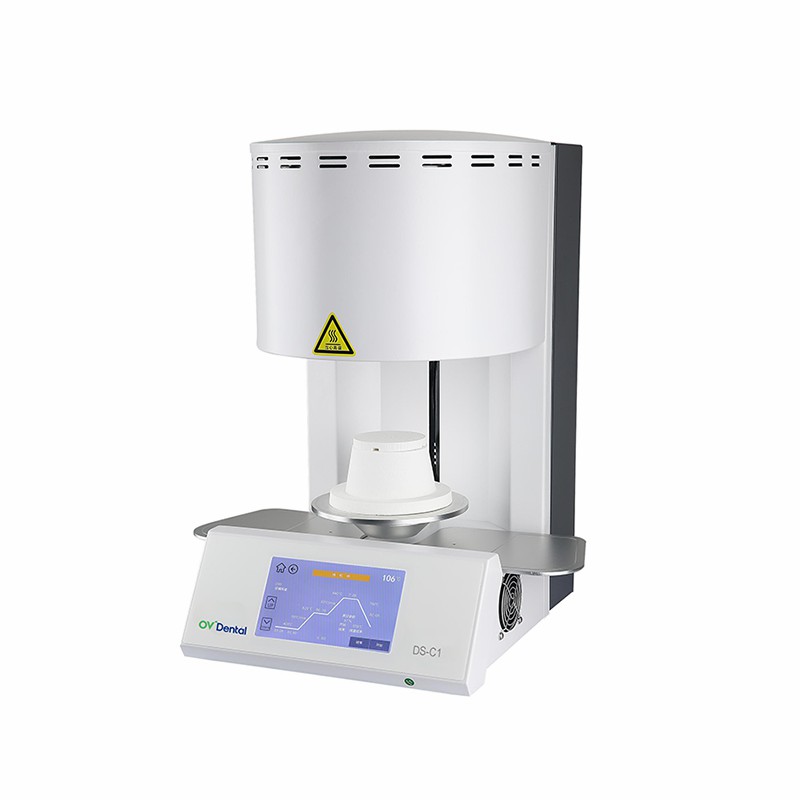

DS-C1 Universal Sintering Furnace

Features

  • Two-stage sintering program allows crystallzation of blue porcelain blocks,meeting chairside demands.
  • Double-layer metal furnace chamber provides excellent thermal insulation.
  • Adopts a silent,oil-free vacuum  pump to ensure a perfect vacuum effect.
  • Utilizes a high-temperature,high-purity quartz tube furnace chamber configuration for more uniform heating and more translucent porcelain firing.
  • Features a unique tempering and dehumidification (slow cooling)function.
  • Extra-large touchscreen LCD provides clear visibility and has 200 built-in editable programs.
  • Equipped with furnace chamber cooling function and emperature  compensation function.
  • Dual valve control system ensures more perfect color and reduces the machine's operational load.

Specification Data

Input Voltage / Frequency / Power 20V / 50Hz ±10% / 1200W + 350W
Heating Rate 1–100 ℃/min
Ultimate Vacuum VMAX = 97%
Usable Furnace Chamber Size φ85 × 55 mm
Max Working Temperature 1150 ℃
External Dimensions (W × D × H) 33 × 42 × 56 cm
Net Weight 27 kg
