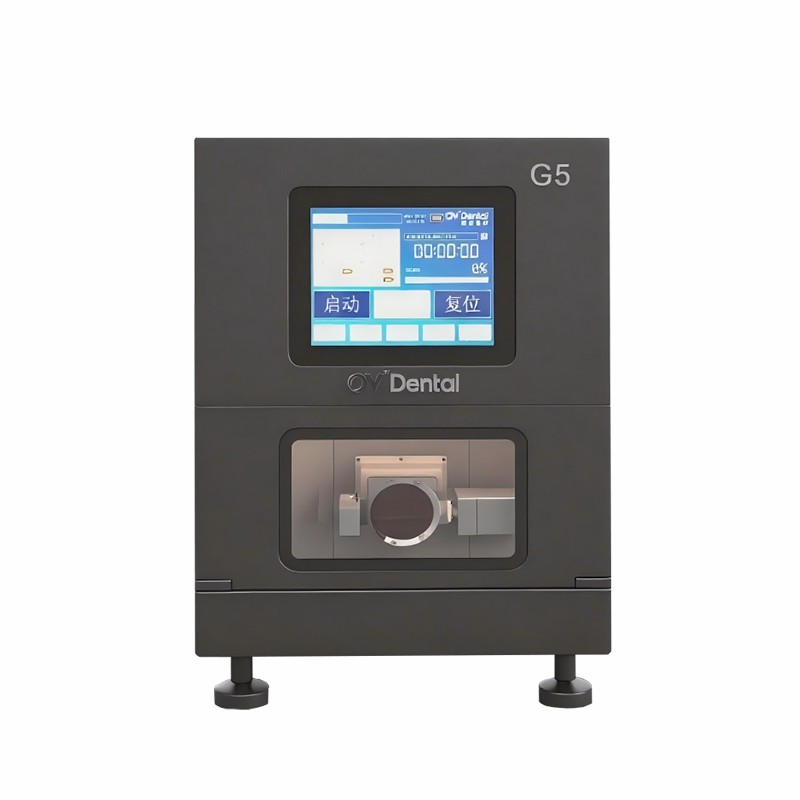

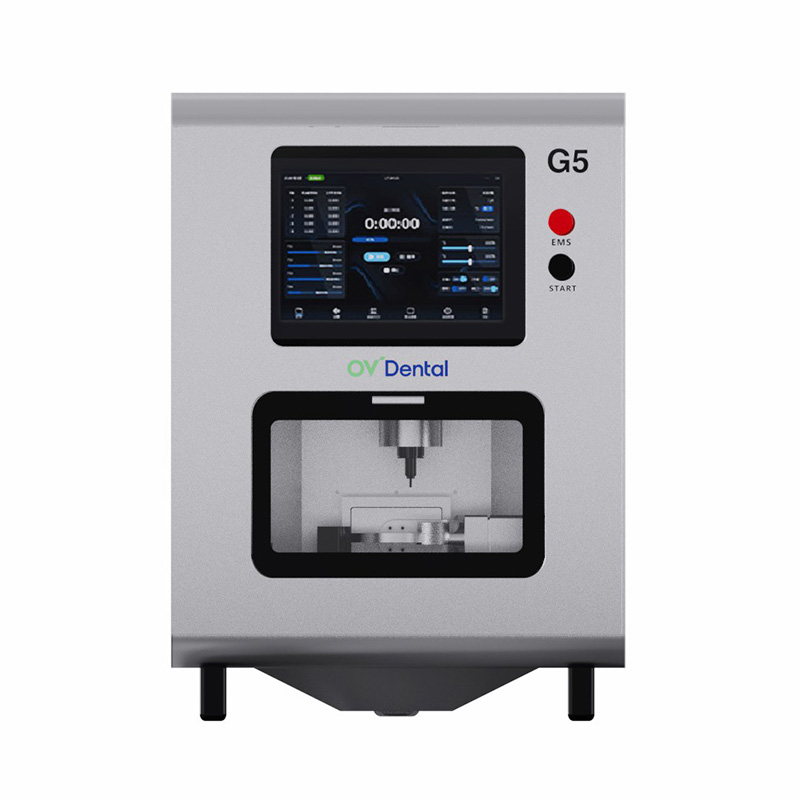

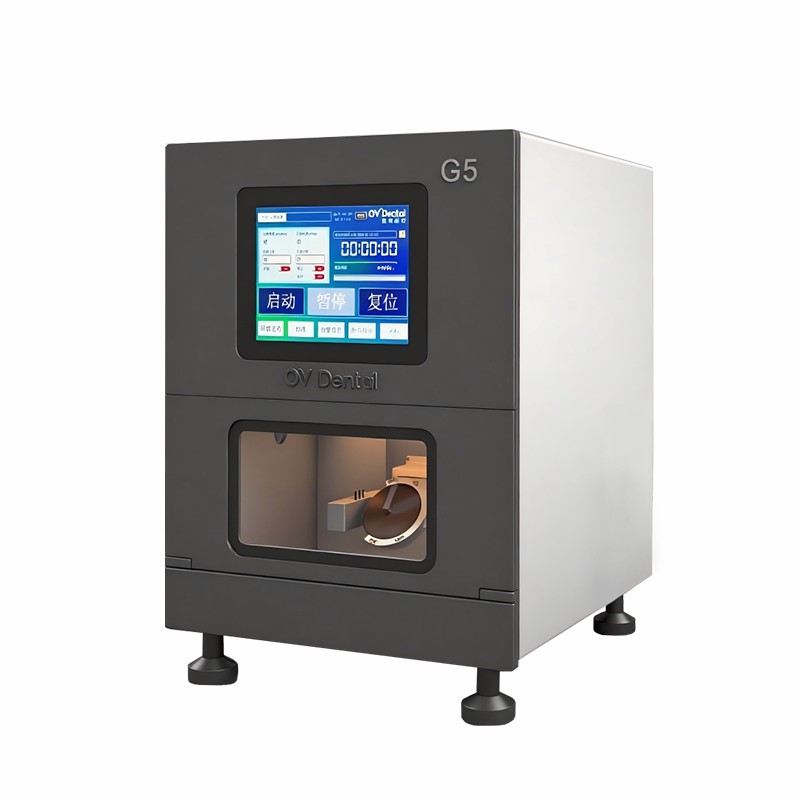

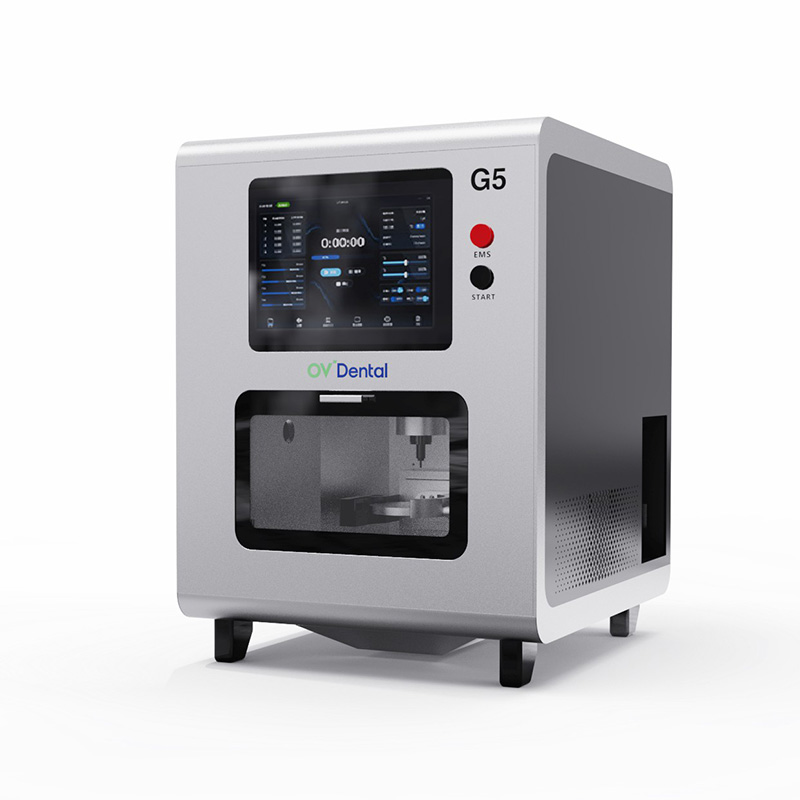

G5-Axis Dry Milling Machine

Features

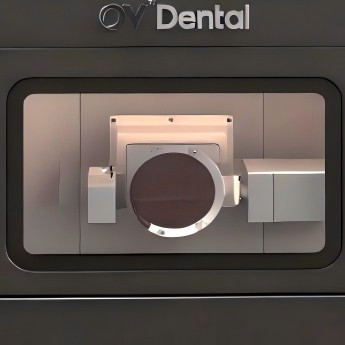

  • The C-type open fixture saves materials,improving efficiency and ease of operation.

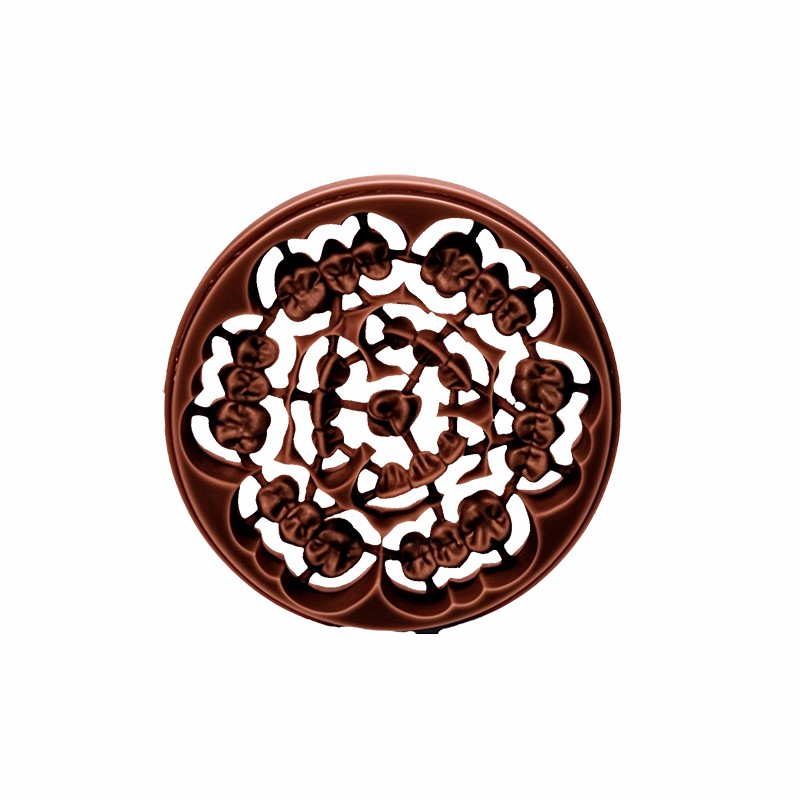

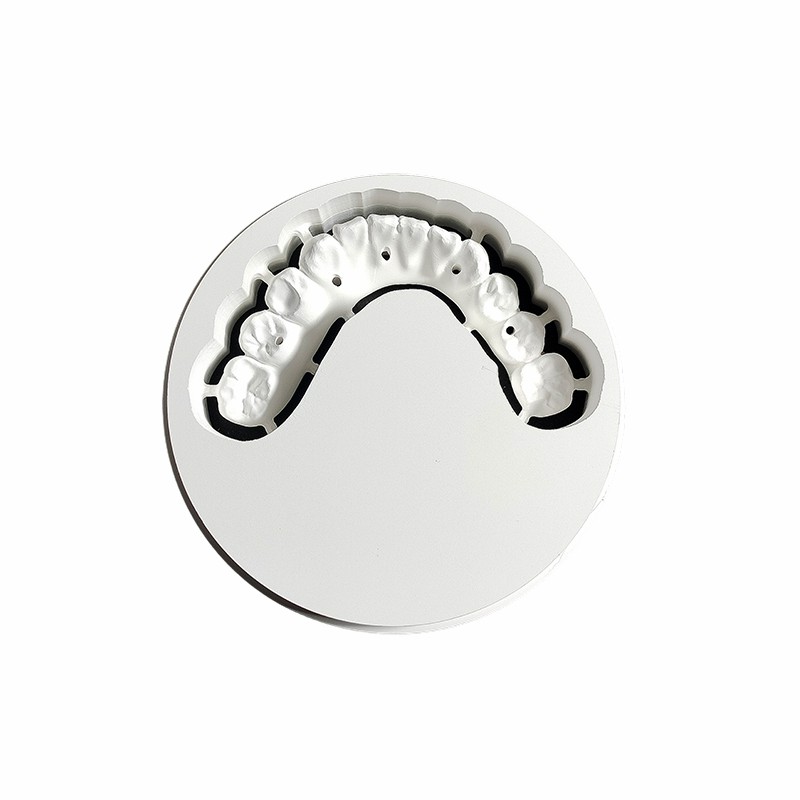

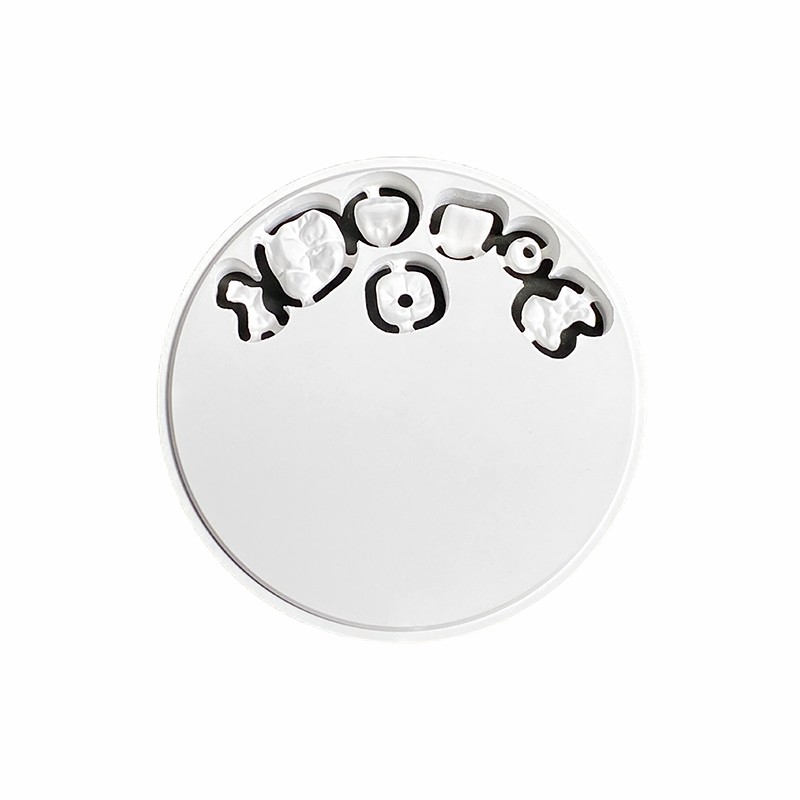

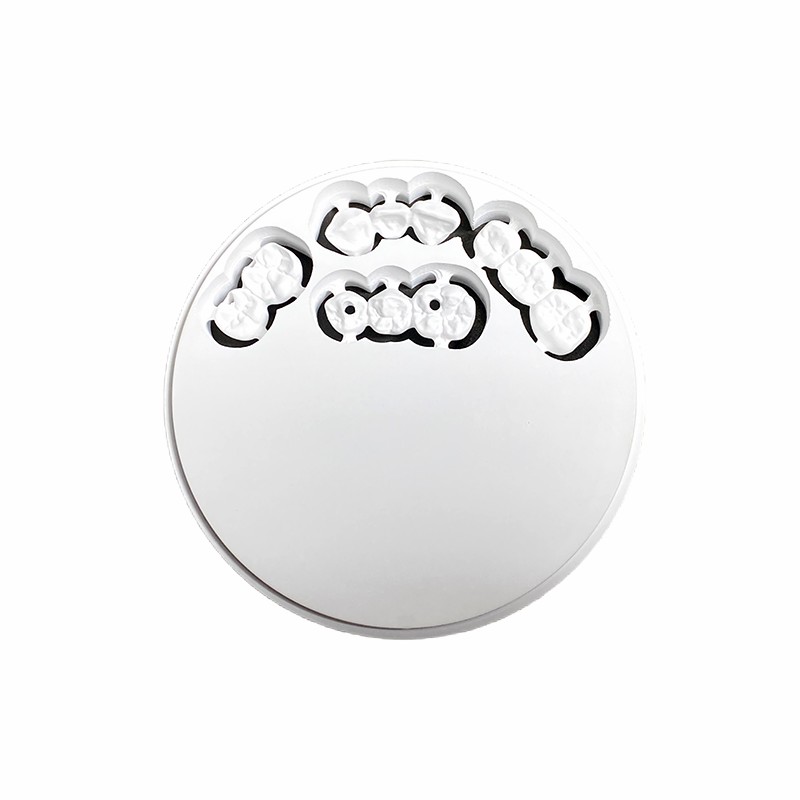

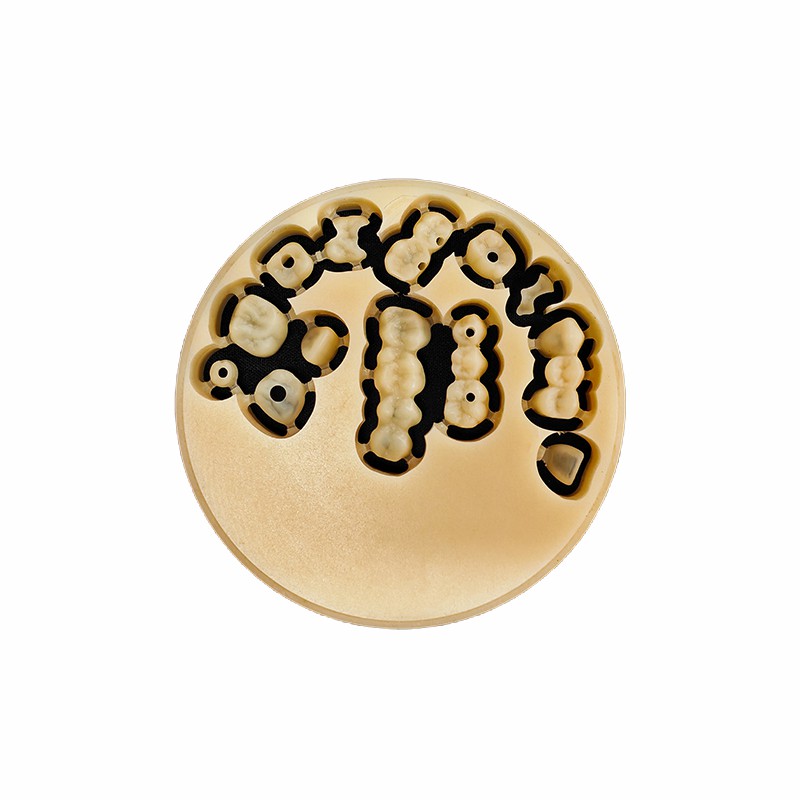

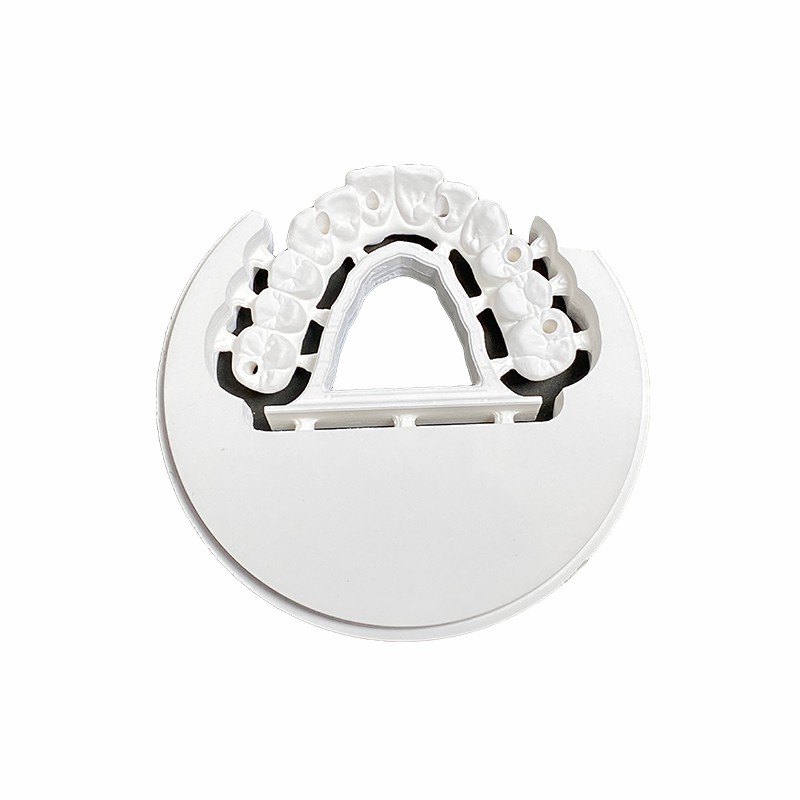

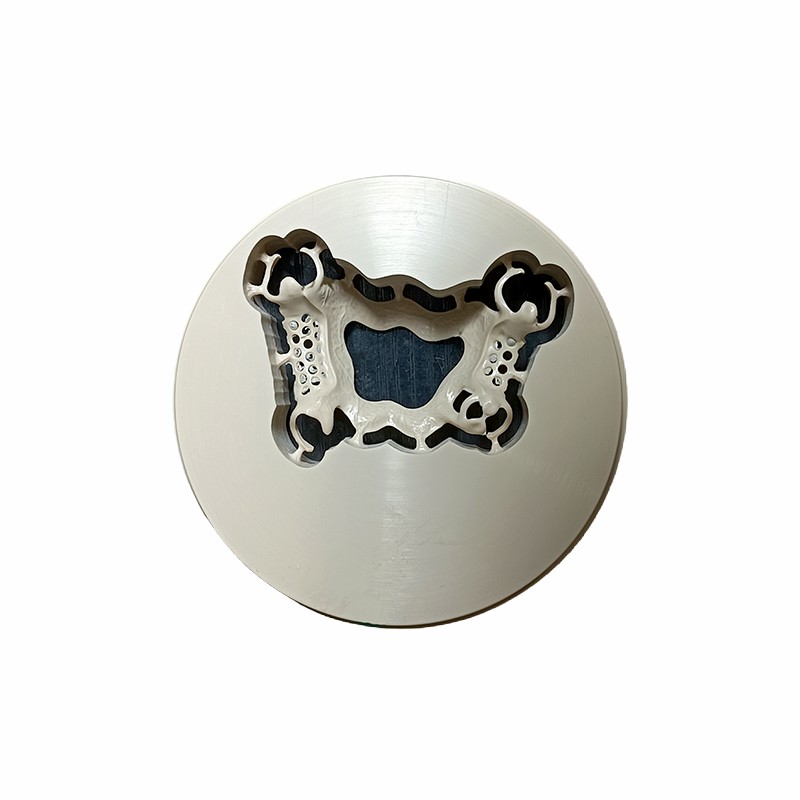

  • Achieves high-precision 5-axis linkage milling,making implant crowns,bridges,and malar bridges more precise.
  • Excellent dust collection system and sealing performance
  • Protection against incorrect tool change operations

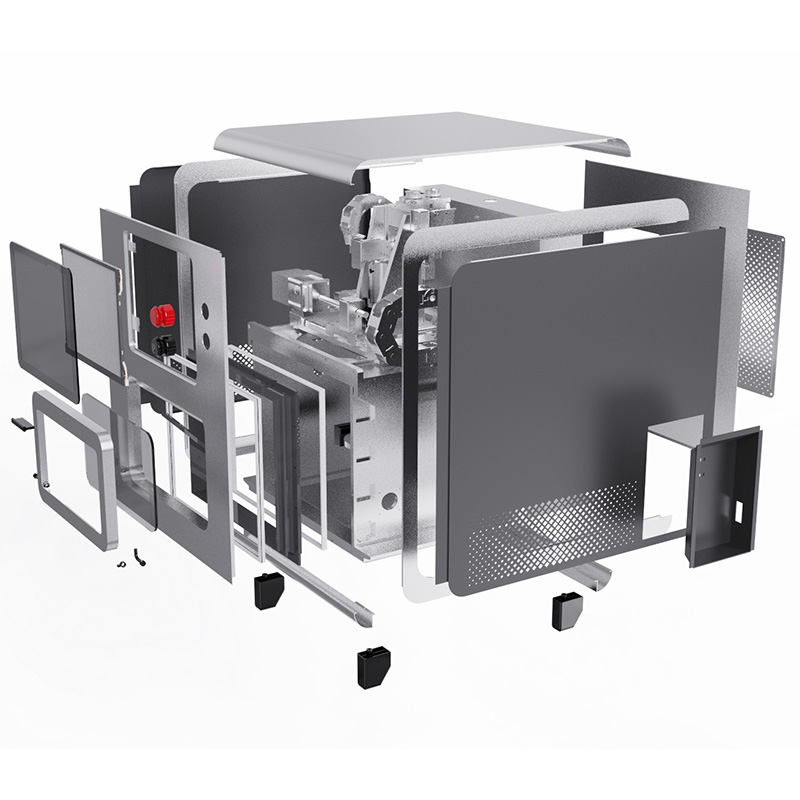

  • Simple and convenient secondary development interface Mechanical structure analyzed by finite element methods,ensuring enhanced stability during rapid operation.

Specification Data

Axis 5 Axis Linkage
Miling Type Dry Milling
Processing Material Zirconia, Wax, PMMA, peek, Epoxy
Processing Material Size p98mm (thickness 10–30mm)
Spindle Speed 60000rpm
Rotation Angle A-360/+360°, B-35°/+100°
Tool Magazine 6T / 12T
Tool Spec D3 x L40
Miling Range (X/Y/Z) 130 / 108 / 105mm
Power 1.0KW
Dimention (W/D/H) 55 x 55 x 77cm
Weight 110KG

G5-Axis Dry Milling Machine

G5-Axis Dry Milling Machine

G5-Axis Dry Milling Machine

G5-Axis Dry Milling Machine

G5-Axis Dry Milling Machine

G5-Axis Dry Milling Machine

G5-Axis Dry Milling Machine
