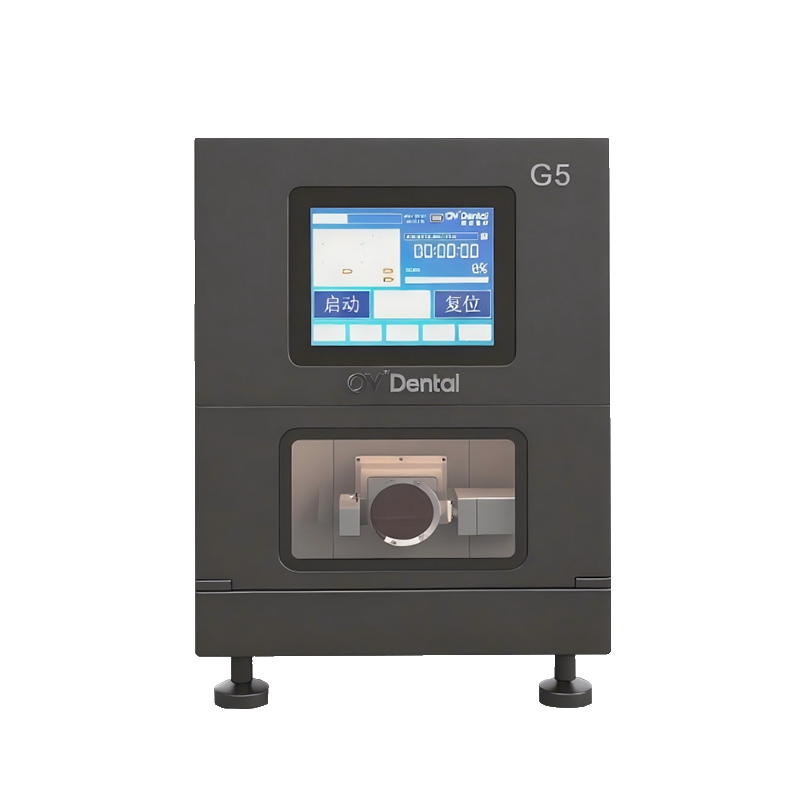

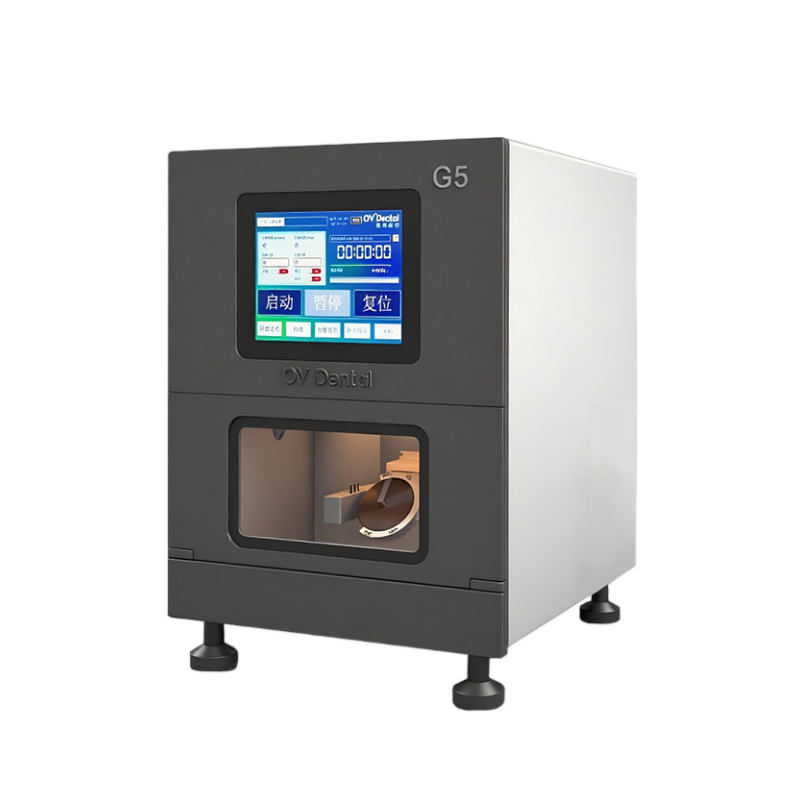

G5 5-Axis Dry Milling Machine

Compact and efficient 5-axis dry milling machine, capable of processing multiple materials with stability and ease, perfect for precise dental applications.

Features

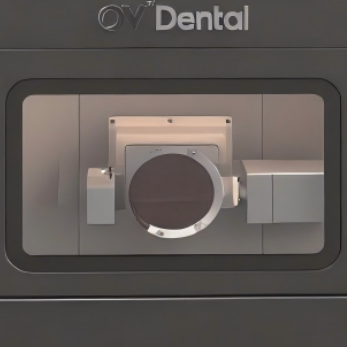

C-type open fixture for material-saving and easy operation
High-precision 5-axis linkage milling
Dry milling of zirconia, wax, PMMA, PEEK, epoxy
Spindle speed up to 60,000 rpm

Inquiry

Email us

G5 5-Axis Dry Milling Machine

G5 5-Axis Dry Milling Machine

G5 5-Axis Dry Milling Machine

G5 5-Axis Dry Milling Machine

G5 5-Axis Dry Milling Machine

G5 5-Axis Dry Milling Machine

G5 5-Axis Dry Milling Machine

G5 5-Axis Dry Milling Machine

G5 5-Axis Dry Milling Machine

G5 5-Axis Dry Milling Machine

G5 5-Axis Dry Milling Machine

G5 5-Axis Dry Milling Machine

G5 5-Axis Dry Milling Machine

G5 5-Axis Dry Milling Machine

G5 5-Axis Dry Milling Machine

G5 5-Axis Dry Milling Machine

Product Intro Video

Specification Data

Axis	5 Axis Linkage
Miling Type	Dry Milling
Processing Material	Zirconia,Wax,PMMA,peek,Epoxy
Processing Material Size	p98mm(thickness10-30mm)
Spindle Speed	60000rpm
Rotation Angle	A-360/+360°B-35°/+100°
Tool Magazine	6T/12T
Tool Spec	D3xL40
Miling Range(X/Y/Z)	130/108/105mm
Power	1.0KW
Dimention(W/D/H)	55x55x77cm
Weight	110KG

Advantages:

Saves material and improves operational efficiency
Produces highly precise crowns, bridges, and malar bridges
Maintains clean working environment with dust protection
Prevents errors from incorrect tool changes
Supports diverse materials for versatile dental applications
Stable, reliable, and compact design for easy integration
