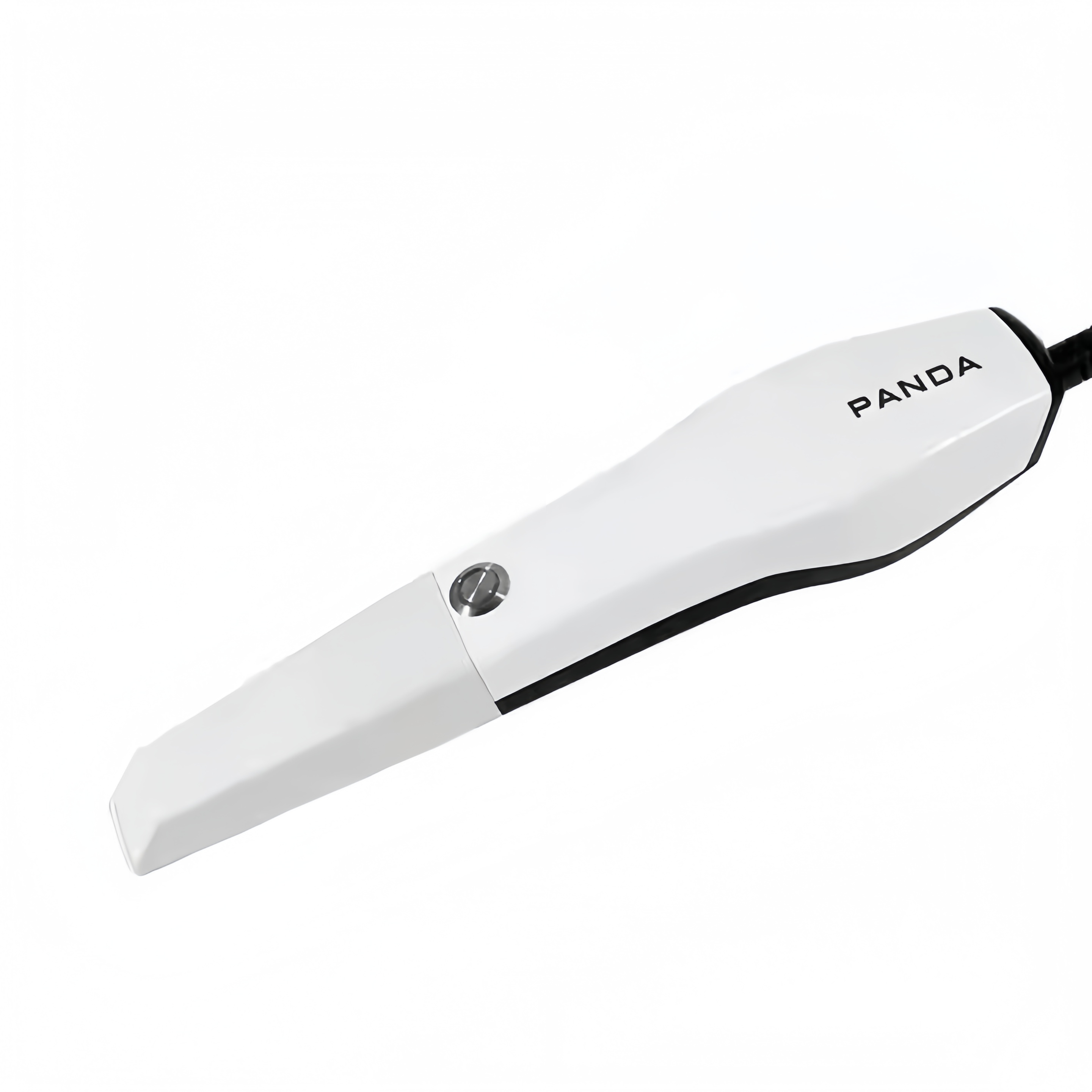

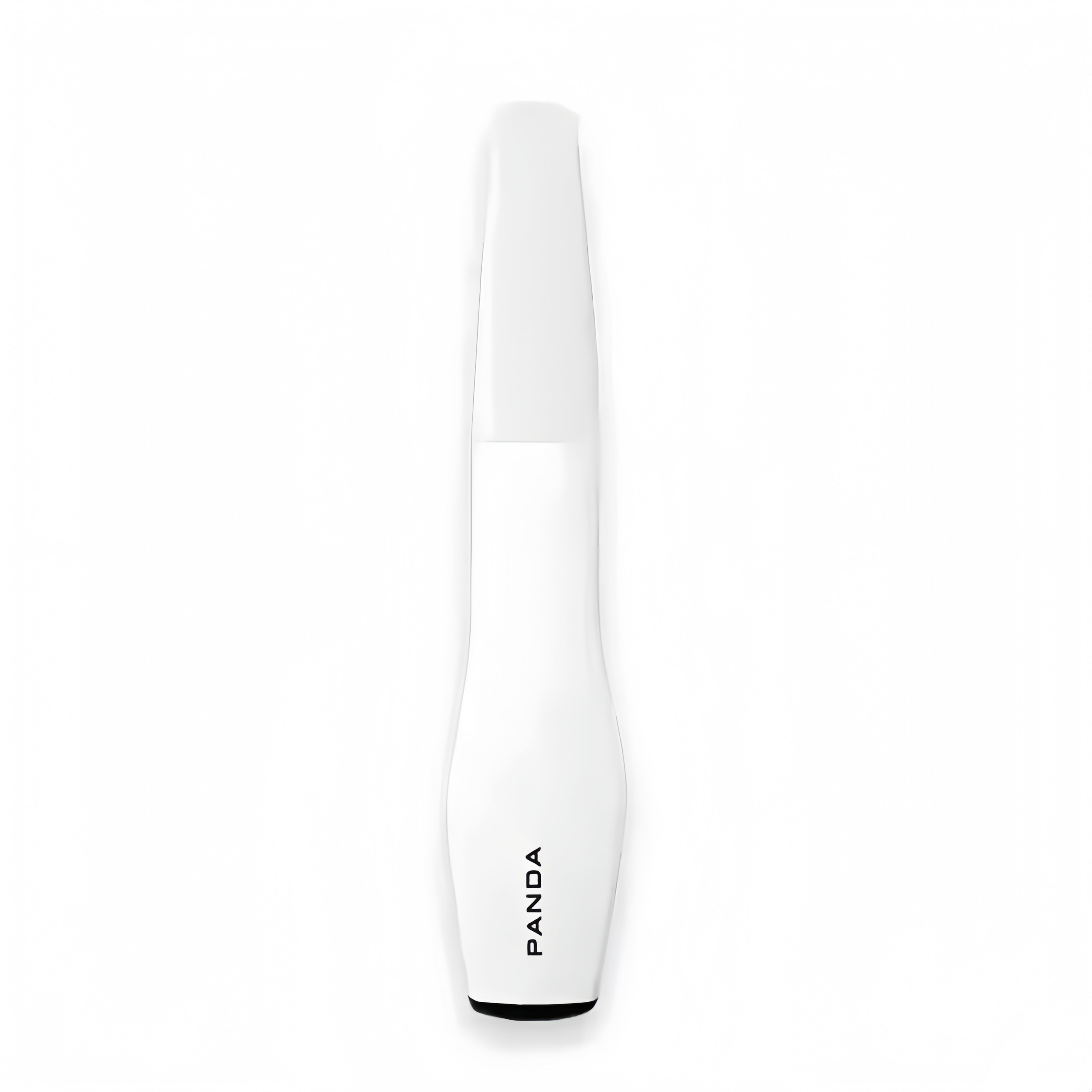

PANNA P3 Oral Scanner

Features

  • Comfortable: Scanner head entry height is only 14mm.
  • Exclusive patented design: Multi-angle scanner head with built-in heating, supports high-temperature and high-pressure sterilization.
  • Infection control made easy: Newly added button enables scanning without touching the computer
  • Intelligent: Wide field of view and large depth of field (0–20mm).
  • User-friendly: Auto-calibrator allows for easy operation and quick learning.
  • Versatile: Suitable for multidisciplinary applications.
  •  Accurate: Independently developed projection chip module and optical imaging module ensure precise measurement.
  • Compact: Weighs only 228g; device dimensions: 216mm × 40mm × 36mm.

Specification Data

Model PANDA P3
Scanning Technology Dynamic structured light 3D scanning
Device Dimensions (L×W×H) 216 × 40 × 36 mm
Weight 228 g
Scanning Specifications Three scan heads supported; compatible with high-resolution scans
Scanner Head Size (L×W×H) 83×19×14 mm / 81×21×17 mm (D) / 88×21×17 mm (M)
Single Scan Area 18 × 16 mm
Scanning Depth Multi-level adjustable, max depth 20 mm
3D File Format STL, PLY, PTY; supports standard dental formats
Interface USB 3.0
Full-arch Scan Time < 2 minutes
Light Source White LED structured light
Languages Supports multiple languages
Accuracy ≤ 15 μm
Precision ≤ 10 μm
Scanning Method Button / Touchpad
Infection Control Supported
