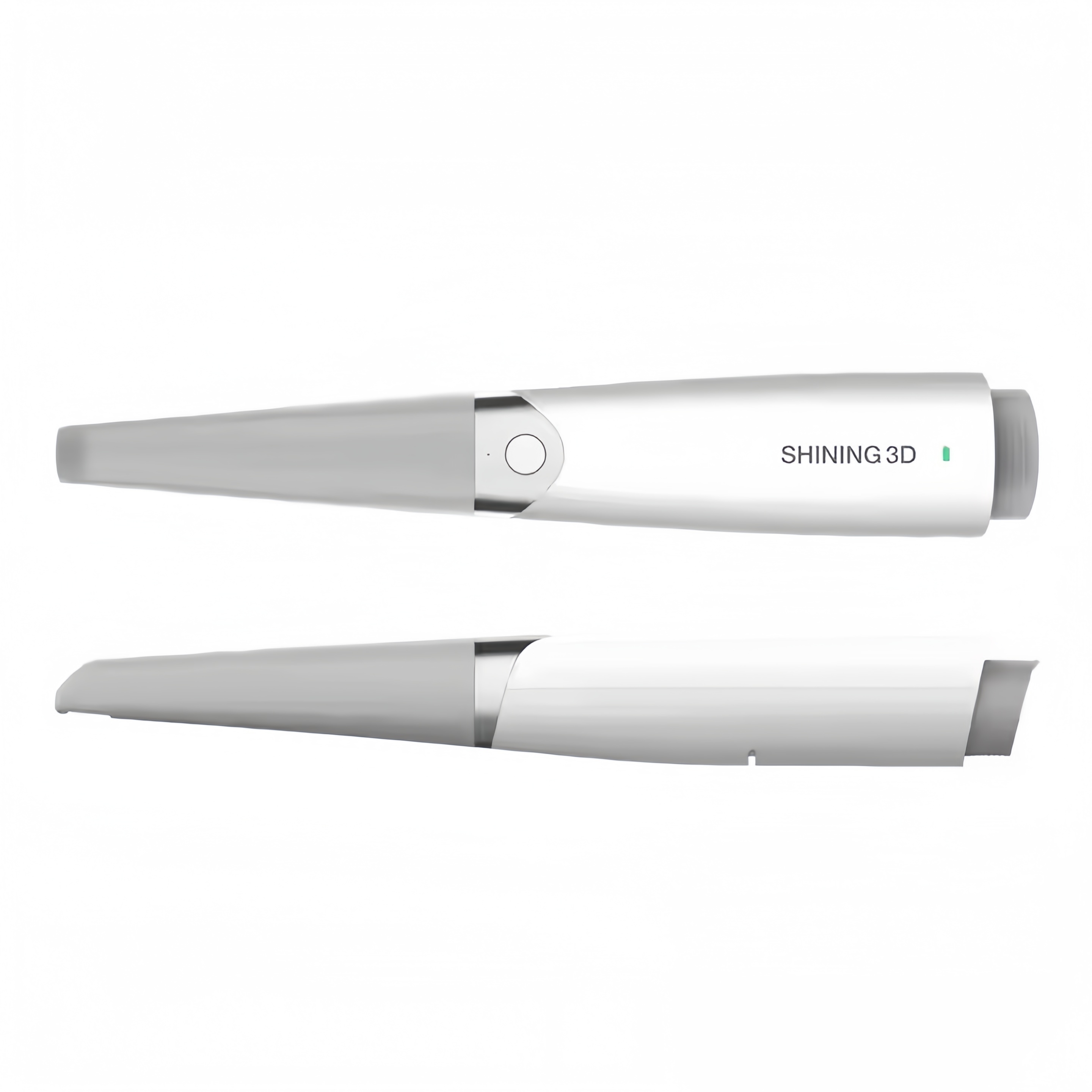

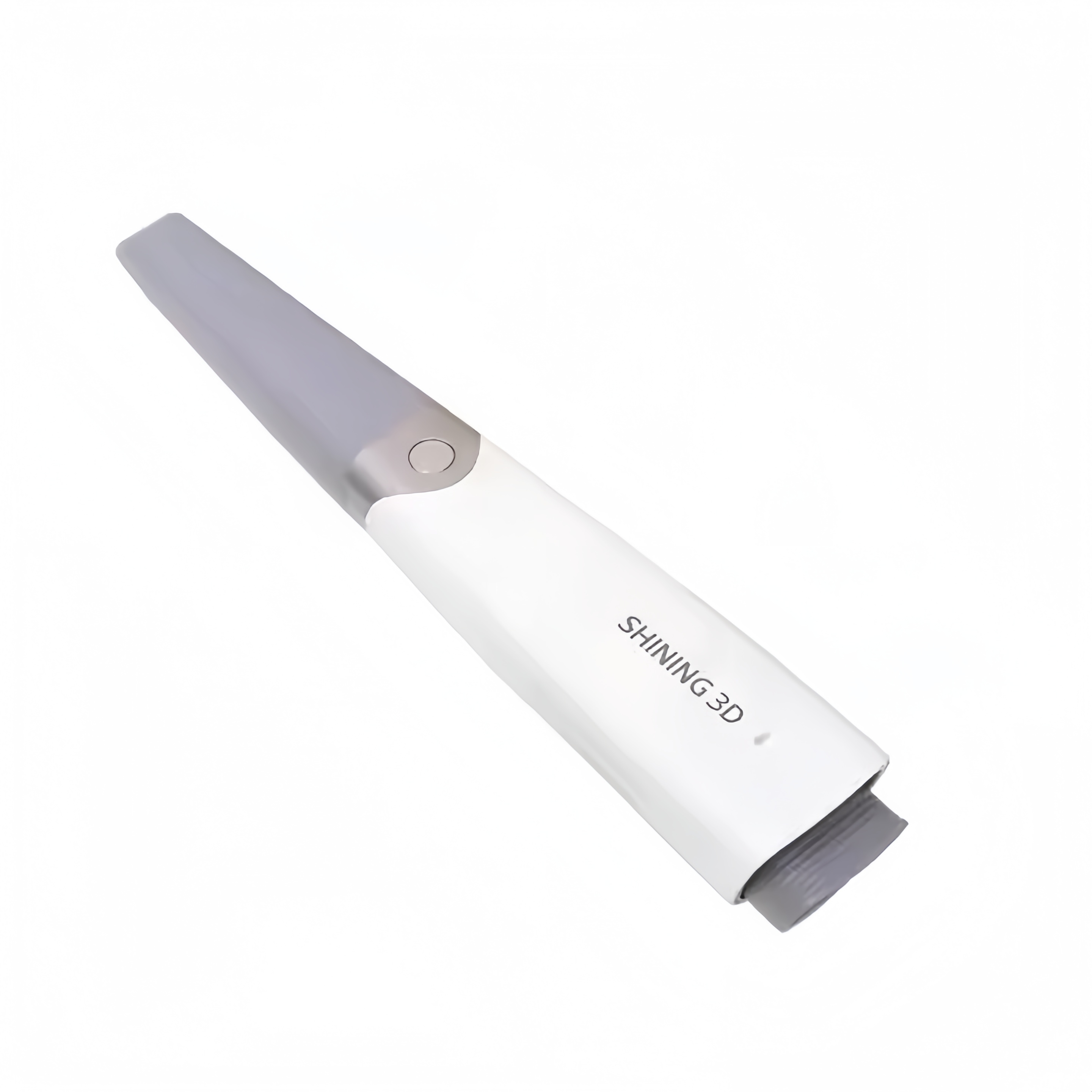

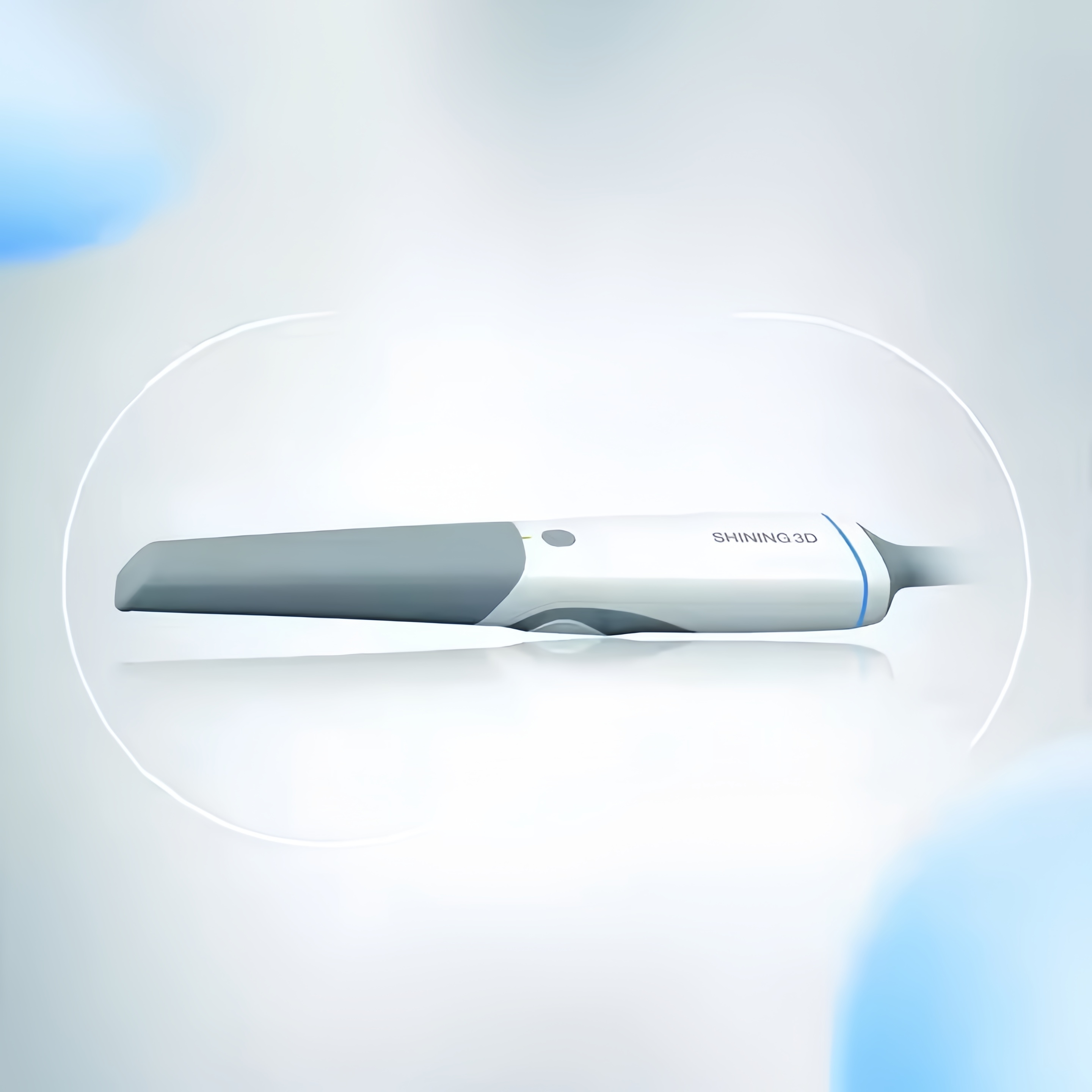

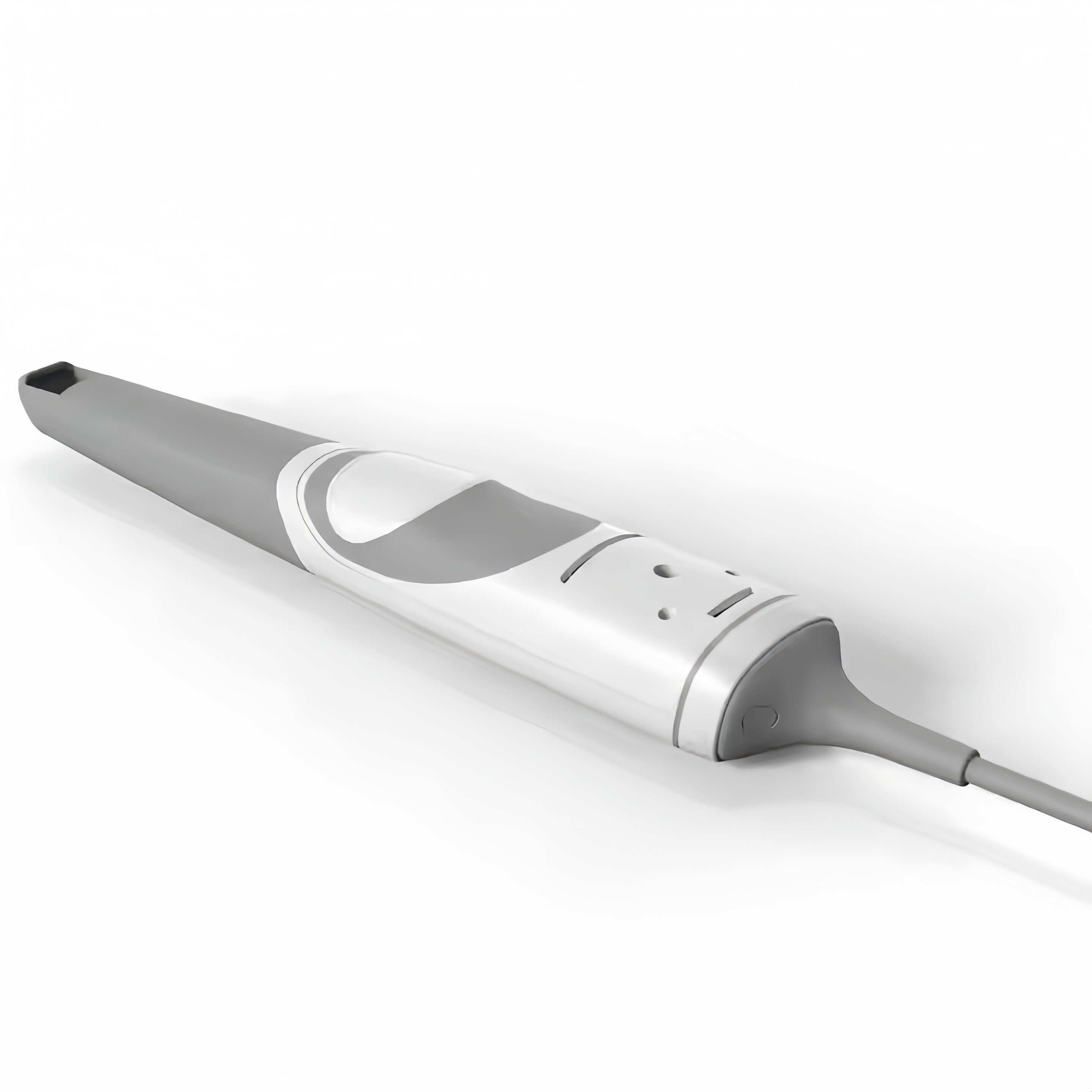

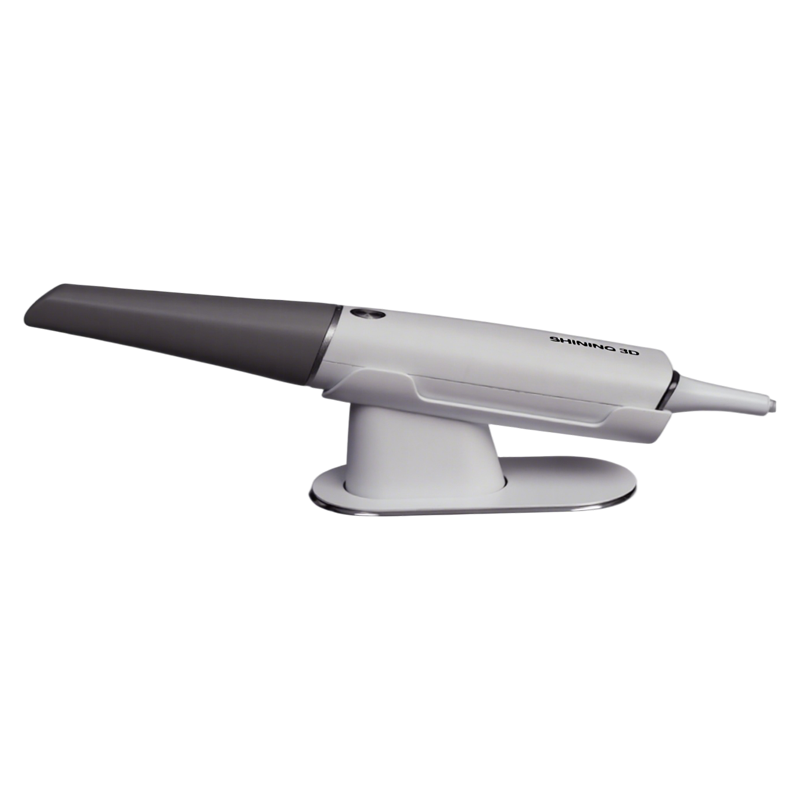

Aoralscan L+ Pro Oral Scanner

Features

  • High-precision true-color scanning, seamless cloud platform transmission, adaptable to multiple scenarios, and empowering collaboration between clinics and labs.
  • Dual scanning heads with high-temperature disinfection support and anti-fog function; ergonomic design, lightweight and flexible.
  • Fast scanning (20 frames/second), high accuracy (≤0.01 mm for a single tooth), and deep scanning depth (up to 22 mm).
  • Supports multi-scenario scanning (fine details, metal teeth, edentulous cases, etc.) with diverse functionality.
  • Intelligent algorithm optimization for automatic data processing and scan quality feedback.
  • Integrated clinical tools to assist diagnosis and prosthesis fabrication.
  • Cloud-based collaboration to improve efficiency among doctors, technicians, and patients.

Specification Data

Aoralscan L+ Pro Technical parameters
Model Aoralscan L
Scanning Area Standard Tip: 16 mm × 12 mmSmall Tip: 12 mm × 9 mm
Scanning Depth 22 mm (From scanner window plane - 2 mm to 20 mm)
Dimensions (L×W×H) 290 mm × 33 mm × 47 mm
Weight 239 ± 20 g (excluding cable)
Connection USB 3.0
Power Supply 12V DC / 3A
PC Recommended Configuration
Configuration Items Recommended Requirements
CPU Intel Core i7 - 8700 and above
Memory 16GB and above
Hard drive 256 GB solid-state drive (SSD) and above
Graphics Card (GPU) NVIDIA® RTX 2060 6GB and above
Operating system Windows 10 Professional (64-bit)
Monitor resolution 1920×1080, 60 Hz and above
Input and output ports More than 2 Type-A USB 3.0 ports
